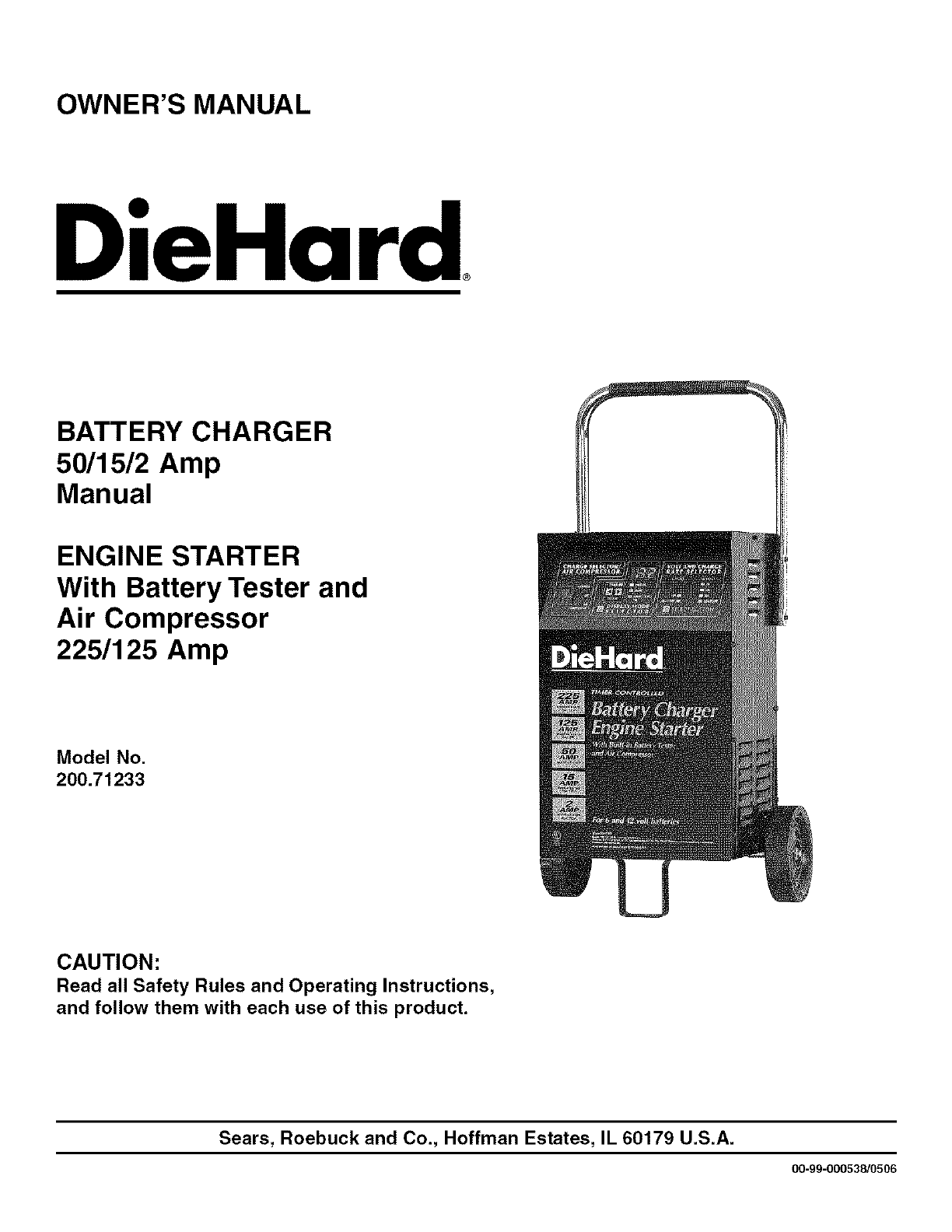

OWNER'S MANUALDieHard BATTERY CHARGER50/1512 AmpManualENGINE STARTERWith Battery Tester andAir Compressor225/125 AmpModel No.200.71233CAUTION:Rea

Using the compressorCAUTION - Read instructions of the product beinginflated before using the compressor. Avoid overinflation, do not exceed the manuf

Charging Your BatteryNOTE: A marine (boat) boat battery must be removedand charged on shore. To charge it on board requiresequipment specially designe

Charging your battery outside the vehicle:NOTE: A marine (boat) must be removed and chargedon shore. To charge it on board requires equipmentspecially

Calculating charge timesThe Chart MethodUse the following table to more accurately determinethe time it will take to bring a battery to full charge.Fi

TroubleshootingPerformance problems often result from little things that you can fix yourself. Please read through this table for a_ossible solution i

IFor information about troubleshooting, call toll-free from anywhere in theU.S.A. 7 am to 4:30 pm Central Time Monday through Friday.1-800-SEARS-64 (1

Table Of ContentsWarranty ... 1Important Safety Instructions ...

Important Safety InstructionsSAVE THESE INSTRUCTIONS• Read all instructions and cautions printed on thebattery charger, battery, and vehicle or equipm

PartsThis section shows an illustration of your battery charger. Use it to become familiar with where all the parts arelocated, and what they look lik

Before Using Your Battery ChargerIt is important to prepare your charger for use. This section will tell you how to assemble the charger, groundand co

AxleAssembly(continued):Place the charger on its side. Place one end of eachbracket into slot, then place the axle assembly undereach bracket. Fasten

Using an extension cordThe use of an extension cord is not recommended. Ifyou must use an extension cord, please make surethat you follow these guidel

Using Your Battery ChargerTo obtain the best results from your battery charger, you must know how to use it properly. This section tells howto set the

12V ALTERNATOR/GENERATOR DISPLAY14 - 15 volts = Good condition12.8 or less volts = Check with qualifiedtechnician12.8 - 14 volts or = See vehicle owne
